18-Slot Inner Magnet Inserter

Name: 18-Slot Inner Magnet Inserter
Brand: Taizhou Longjiang Automation Equipment Co., Ltd.

Manual Load/UnloadRotor

Smarter Winding Solutions

Scroll Down

Specifications

Parameter	Specification
Applicable Rotor OD	≤102mm
Magnet Steel Length	≤35mm
Magnet Steel Width	≤29mm
Magnet Steel Thickness	≤4.8mm
Insertable Core Length	≤280mm
Magnet Size	L35 x W29 x T4.8
Magnets/Cycle	N/S poles, 8 pcs each

Features

✓Manual Load/UnloadRotor
✓AutomaticMagnet Assembly
✓User-Friendly HMI，Touch ScreenProgramming
✓Automatic N/S polarity detection
✓No spacer between magnet steels

Key Components

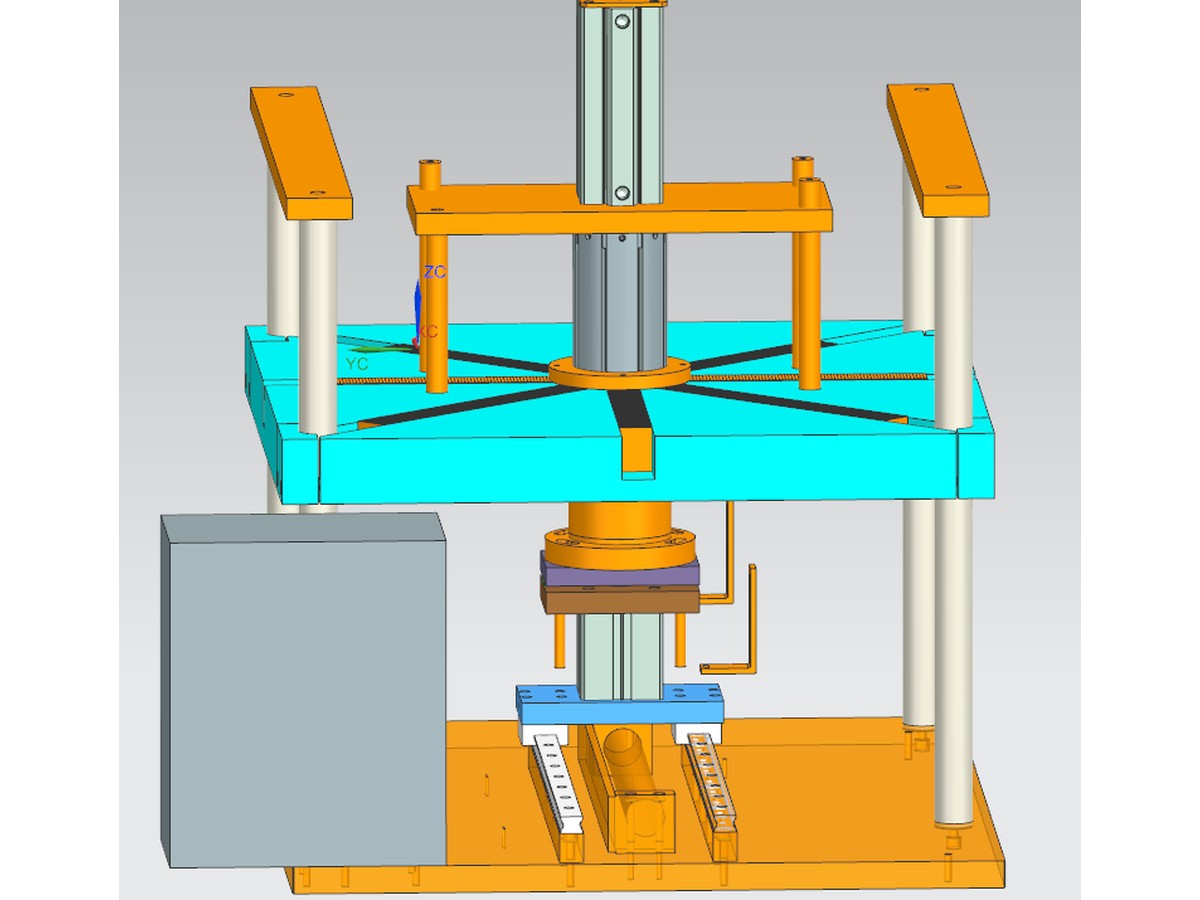

Electrical Control CabinetTouch ScreenMagnet Steel FeederLift CylinderMagnet Pressing CylinderPusher CylinderUpper Die Magnet Steel Ejector PinMagnet Steel SlotRotorLower DieStator Transfer TableStator Indexing TableN-Pole Magnet Steel MagazineS-Pole Magnet Steel MagazineRotor Rotary TableHMI Panel

Applications

Permanent Magnet Motor Rotor AssemblyBrushless Motor Rotor Magnet Steel InstallationServo Motors

Get Your Custom Solution

1-on-1 engineer support · Free sample prototyping

18968693691 View Specs
