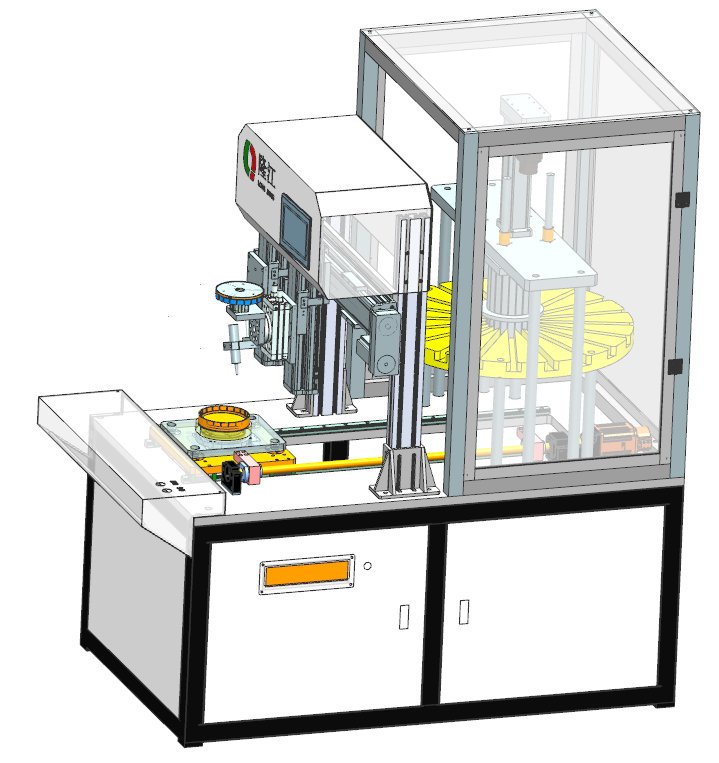

6-Servo Magnet Insertion Glue Machine

Name: 6-Servo Magnet Insertion Glue Machine
Brand: Taizhou Longjiang Automation Equipment Co., Ltd.

Manual Load/UnloadRotor

Smarter Winding Solutions

Scroll Down

Specifications

Parameter	Specification
Magazine OD	650mm
Glue Function	Yes
Applicable Rotor OD	≤200mm
Insertable Rotor Length	≤100mm
Magnet Size	L≤50mm / W≤30mm / T≤5mm
Magnets/Cycle	N/S poles, 10 pcs each

Features

✓Manual Load/UnloadRotor
✓AutomaticMagnet Assembly
✓Auto Gluing/Glue
✓User-Friendly HMI，Touch ScreenProgramming
✓Automatic N/S polarity detection
✓No spacer between magnet steels

Key Components

Electrical Control CabinetTouch ScreenStart SwitchMagnet Steel Magazine DiscMagnet Steel FeederGlue Machine FrameGlue ControllerMagnet Insertion Electric CylinderServo Ball ScrewRotor Indexing BaseHigh-Precision Servo Rotor Indexing TableMagnet Steel Infeed DieMagnet Pressing InsertionRotorHMI Panel

Applications

Permanent Magnet Motor Rotor AssemblyBrushless Motor Rotor Magnet Steel InstallationServo Motors
