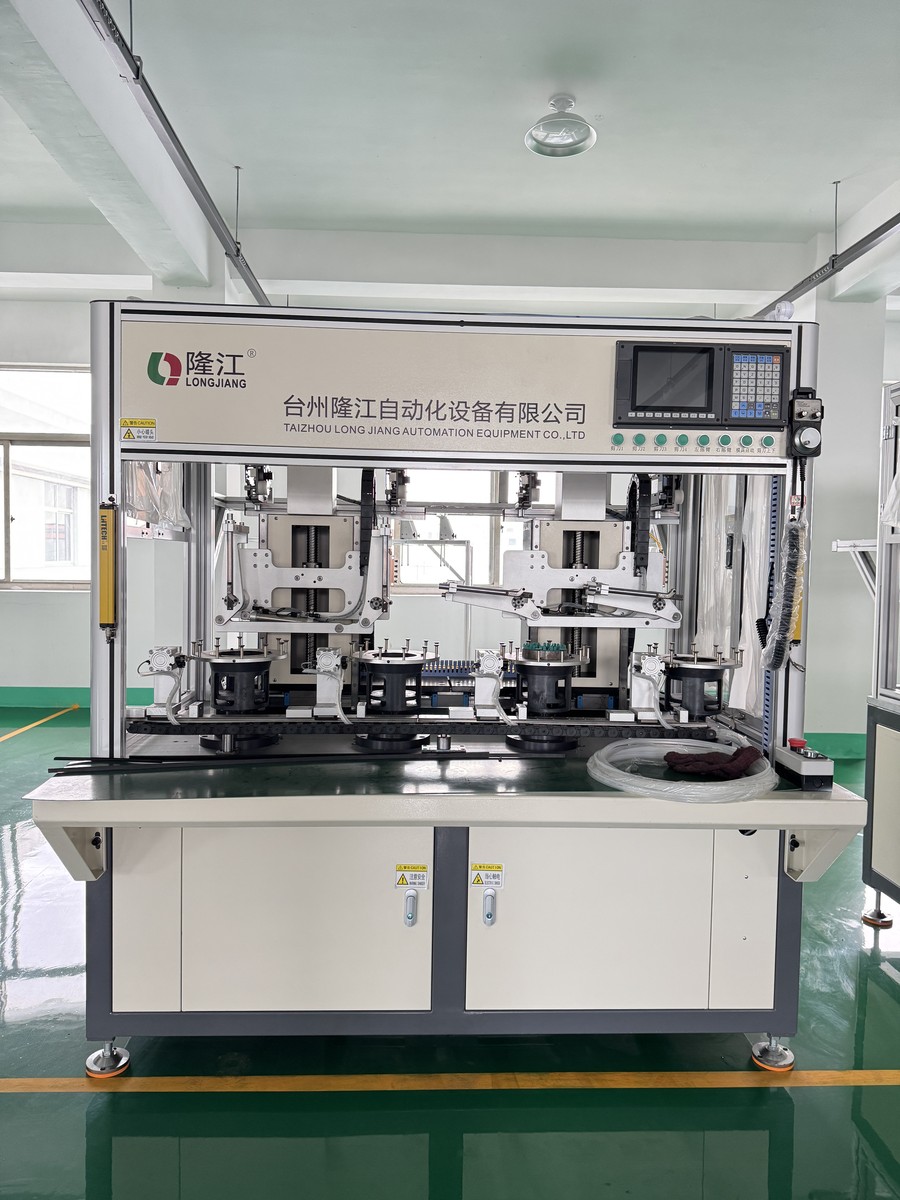

LJ-7HS-3 Dual-Station Winding Machine

Name: LJ-7HS-3 Dual-Station Winding Machine
Brand: Taizhou Longjiang Automation Equipment Co., Ltd.

Auto wire-end reservation at fixed length

Smarter Winding Solutions

Scroll Down

Specifications

Parameter	Specification
Stations	Dual-Station
Winding Type	Inner Winding
Strands & Wire Range	Single: φ0.3-φ1.2mm; Multi: ≤0.6mm × 6 strands
Stator Slots	3, 6, 9, 12, 18, 24, 36, etc.
Stator OD	≤210mm
Turns	0-9999
Stator ID	≥20mm
Spindle Speed	0 - 150rpm
Stack Height	≤180mm
Air Pressure	0.6-0.8MPa
Total Power	10.5kw
Power Supply	AC380V 50/60Hz (3-Phase 5-Wire)
Gross Weight	700KG
Dimensions	163018502000mm
Tungsten Steel Needles (Consumables)	Customized to core; 2 pcs
Included Fixtures	1 set
Tool Box	1 set
Indexing Drive Belt	8M, 1 pc
Control System	5-Axis CNC System (Taiwan)
Model	LJ-7HS-3 Dual-Station Winding Machine

Features

✓Auto wire-end reservation at fixed length
✓Auto winding with auto indexing
✓Auto wire clamp and cut
✓Neat wire arrangement, saves labor & material
✓5-axis CNC system (Taiwan)
✓Hand-wheel precision adjustment
✓Stator positioning device
✓Wire break detection with auto-stop
✓Safety light curtain protection

Key Components

Control ConsoleStart ButtonClamping FixtureCutter MechanismControl PanelServo MotorsBall ScrewLinear Guide RailIndexing MotorSafety Light CurtainWinding Needle RodWinding Needle TipWire Guide RingWire PostLimit Stop PlateInner Clamp DieOuter DieWinding Mold

Applications

PMDC MotorsBrushless MotorsMotor Stator WindingEV MotorsPower Tool Motors

Get Your Custom Solution

1-on-1 engineer support · Free sample prototyping

18968693691 View Specs
