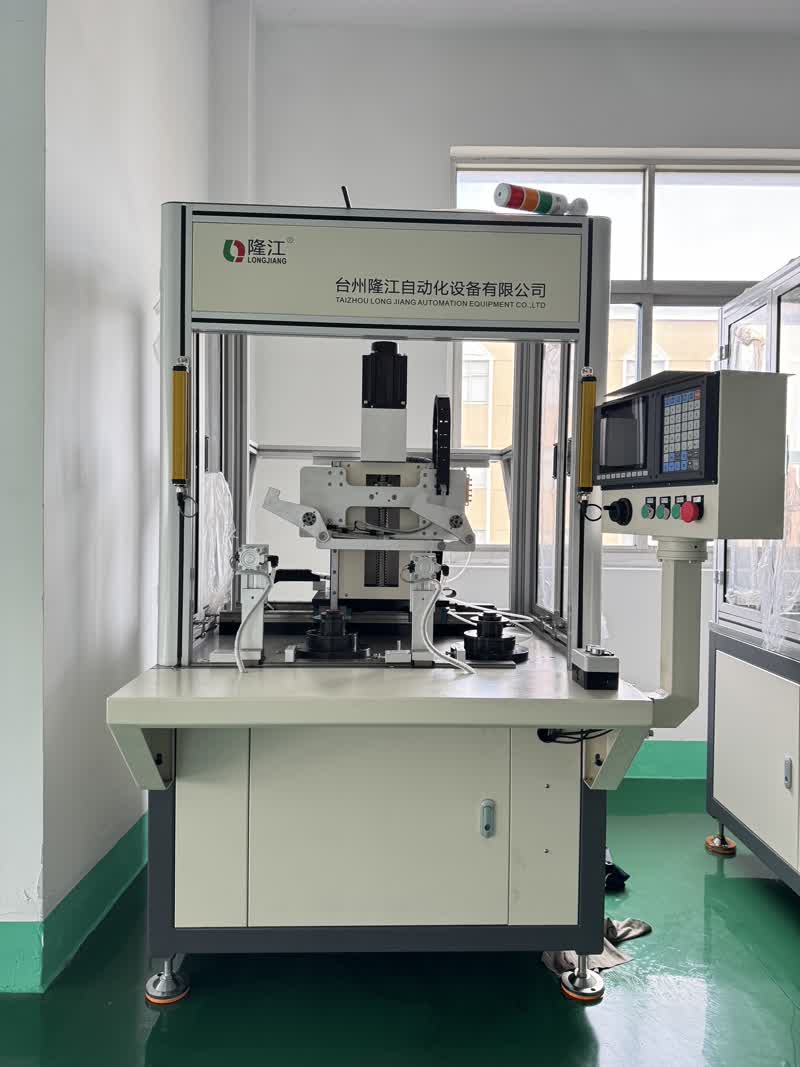

LJ-CGDJ-1 Magnet Insertion Glue Machine

Name: LJ-CGDJ-1 Magnet Insertion Glue Machine
Brand: Taizhou Longjiang Automation Equipment Co., Ltd.

Manual Load/UnloadRotor

Smarter Winding Solutions

Scroll Down

Specifications

Parameter	Specification
Magazine OD	640mm
Cycle Time	20-30sec/pc
Magnets/Cycle	10 pcs
Glue Function	Yes
Model	LJ-CGDJ-1
Applicable Rotor OD	≤250mm
Insertable Rotor Length	≤150mm
Magnet Size	L≤50mm / W≤30mm / T≤5mm

Features

✓Manual Load/UnloadRotor
✓AutomaticMagnet Assembly
✓Auto Gluing/Glue
✓User-Friendly HMI，Touch ScreenProgramming
✓Automatic N/S polarity detection
✓No spacer between magnet steels

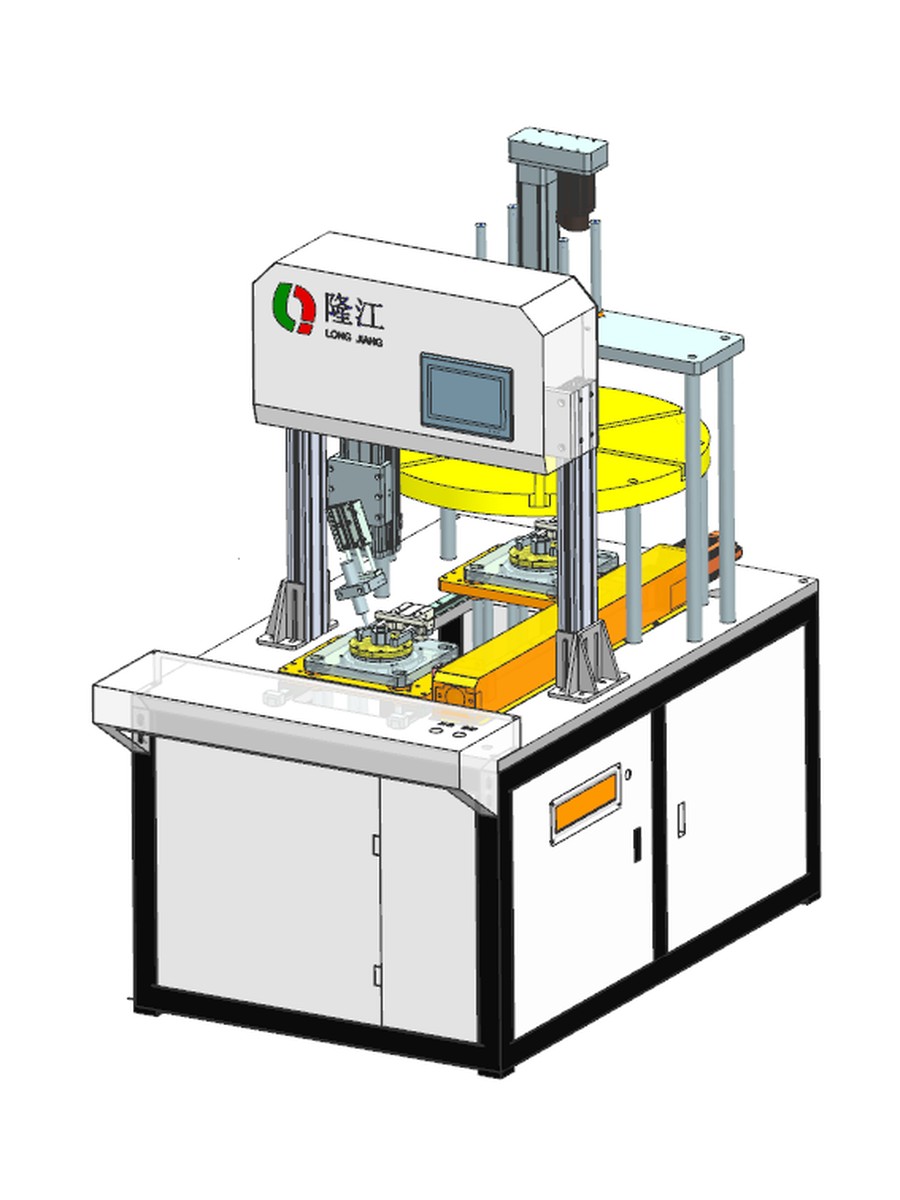

Key Components

Electrical Control CabinetTouch ScreenStart SwitchMagnet Steel Magazine DiscMagnet Steel FeederServo MotorsGlue ControllerMagnet Insertion Electric CylinderServo Ball ScrewRotor Indexing BaseHigh-Precision Servo Rotor Indexing TableMagnet Steel Infeed DieMagnet Pressing InsertionRotorServo Glue Transfer ModuleHMI Panel

Applications

Permanent Magnet Motor Rotor AssemblyBrushless Motor Rotor Magnet Steel InstallationServo Motors
