Specifications
| Parameter | Specification |
|---|
| Magazine OD | 640mm |
| Cycle Time | 30-40 sec/pc |
| Magnets/Cycle | 10 pcs |
| Glue Function | Yes |
| Model | LJ-CGDJ-3 |
| Applicable Rotor OD | ≤250mm |
| Rotor ID | ≥50mm |
| Insertable Rotor Length | ≤150mm |
| Magnet Size | L≤50mm / W≤30mm / T≤5mm |
Features
- ✓Manual Load/UnloadRotor
- ✓AutomaticMagnet Assembly
- ✓Auto Gluing/Glue
- ✓User-Friendly HMI，Touch ScreenProgramming
- ✓Automatic N/S polarity detection
- ✓No spacer between magnet steels
Key Components

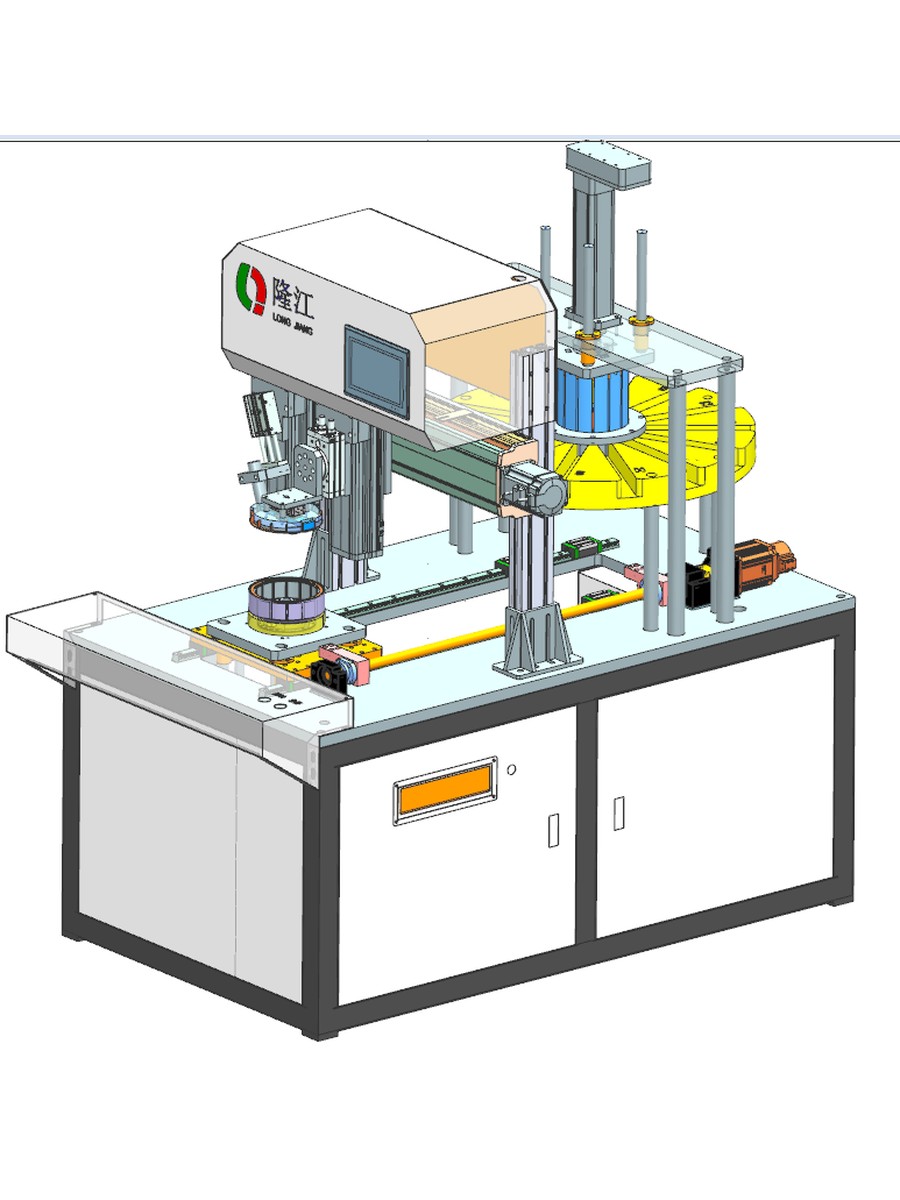

Electrical Control CabinetTouch ScreenStart SwitchMagnet Steel Magazine DiscMagnet Steel FeederServo MotorsGlue ControllerMagnet Insertion Electric CylinderServo Ball ScrewRotor Indexing BaseHigh-Precision Servo Rotor Indexing TableMagnet Steel Infeed DieMagnet Pressing InsertionRotorRotary CylinderElectromagnetic Suction CupServo Glue Transfer ModuleServo Frame Insertion Transfer ModuleHMI Panel
Applications
Permanent Magnet Motor Rotor AssemblyBrushless Motor Rotor Magnet Steel InstallationServo Motors
