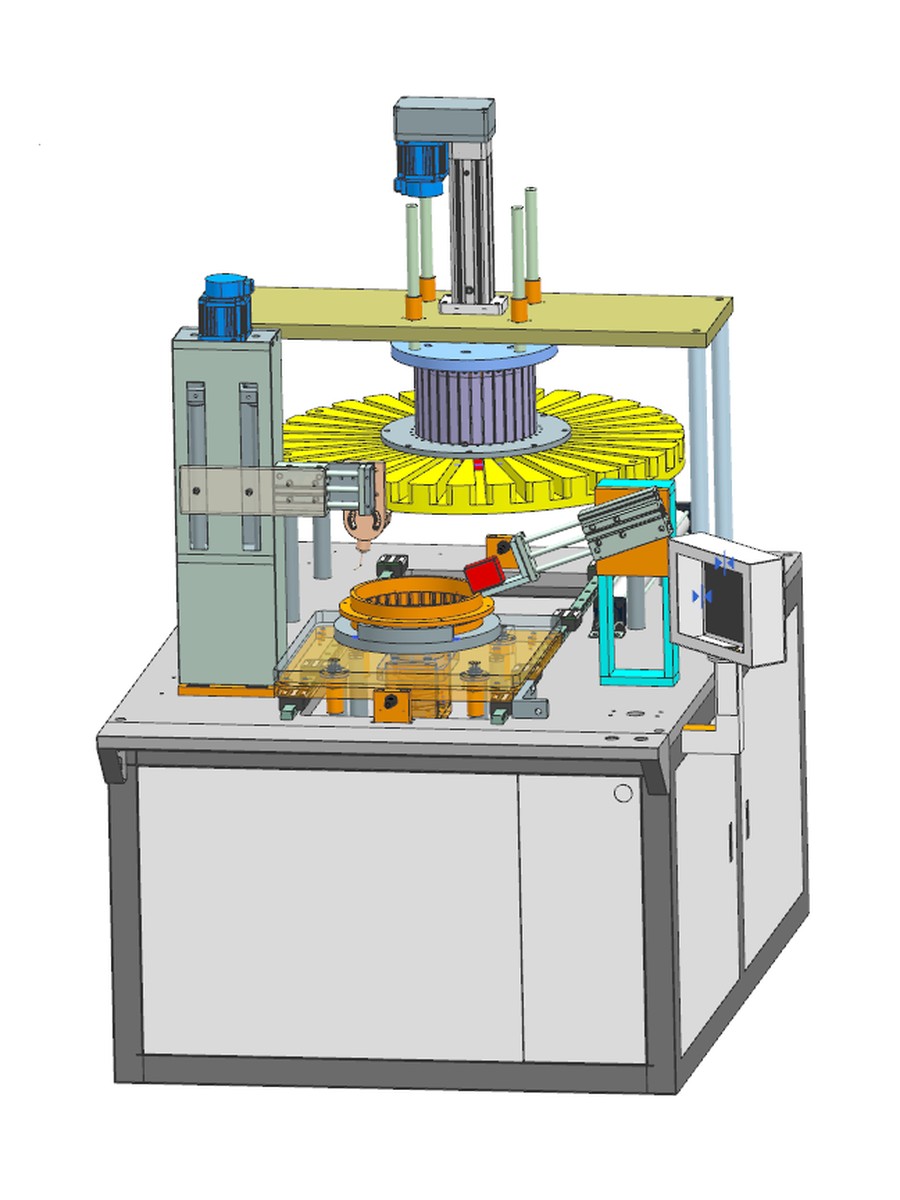

Glue Magnet Assembly Machine (Vision Positioning-Lihua)

Name: Glue Magnet Assembly Machine (Vision Positioning-Lihua)
Brand: Taizhou Longjiang Automation Equipment Co., Ltd.

Manual Load/UnloadRotor

Smarter Winding Solutions

Scroll Down

Key Configuration

Component	Configuration
Base Frame Assembly	ZSZN
Safety Guard Assembly	ZSZN
Moving Worktable Mechanism	ZSZN
Press-Down Mechanism	ZSZN
Servo Motor	INVT
Glue Dispensing System + Vision Inspection	PLC
Pneumatic Cylinder	JISP (Korea)
Solenoid Valve	JISP (Korea)
Filter Regulator + Pressure Switch	JISP (Korea)
Pneumatic Misc. Parts	Domestic
Control System	INVT
Touch Screen	8-inch Color HMI
Electrical Misc. Parts	Schneider Electric
Control Mode	PLC

Features

✓Manual Load/UnloadRotor
✓AutomaticMagnet Assembly
✓Auto Gluing/Glue
✓User-Friendly HMI，Touch ScreenProgramming
✓Automatic N/S polarity detection
✓Vision positioning system

Key Components

Touch ScreenServo MotorsGlue Machine FrameLift CylinderUpper Die Magnet Steel Ejector PinMagnet Steel SlotRotorLower DieVision CameraDisplay ScreenMagnet Steel Isolation DieGlueServo MotorsMagnet Pressing Servo CylinderN-Pole Magnet Steel MagazineS-Pole Magnet Steel MagazineRotor Transfer CylinderHMI Panel

Applications

Permanent Magnet Motor Rotor AssemblyBrushless Motor Rotor Magnet Steel InstallationServo Motors
