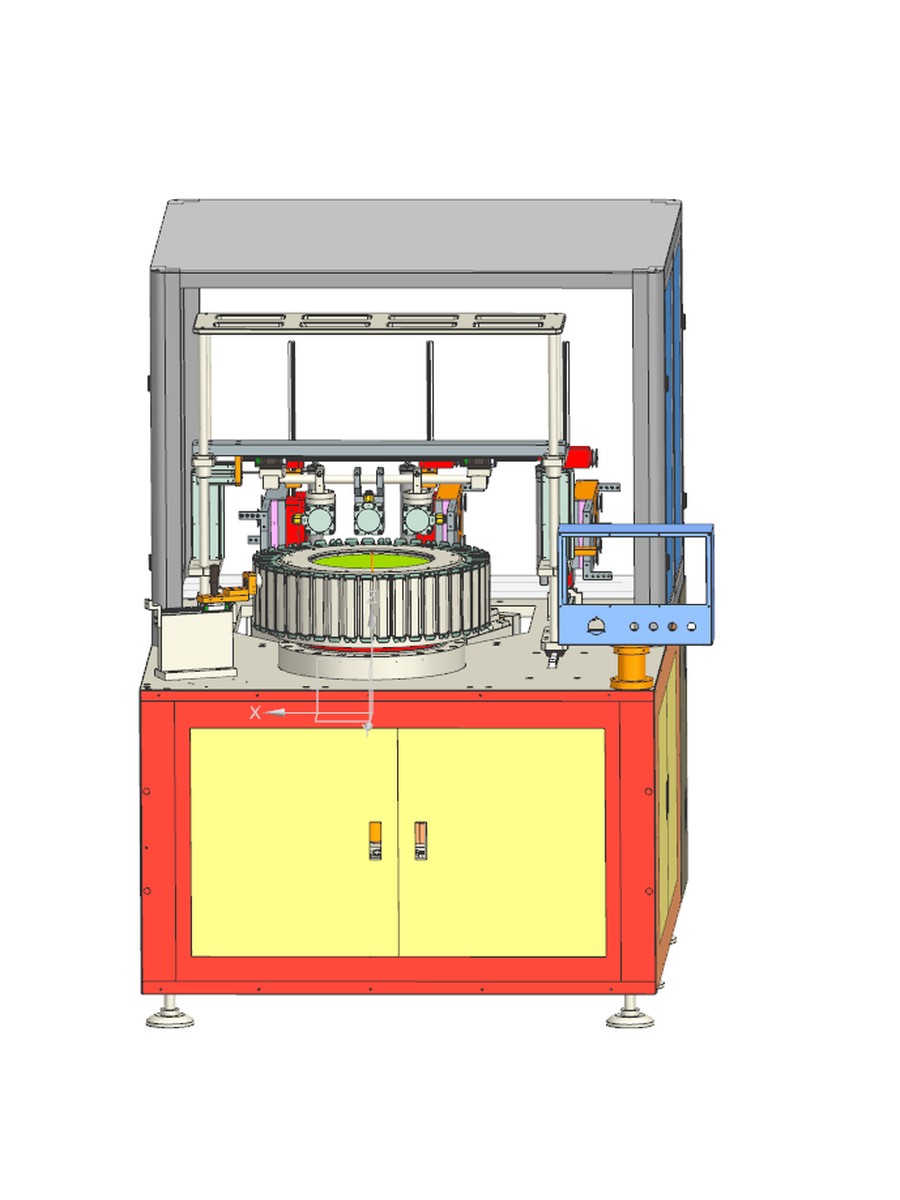

LJ-9WD-1 3-Needle Winding Machine
Auto wire-end reservation at fixed length
Scroll Down
Auto wire-end reservation at fixed length
| Parameter | Specification |
|---|---|
| Winding Type | Three-Needle Winding |
| Model | LJ-9WD-1 |
| Winding Head | LJ-9WD-1 |
| Tensioners | 3 |
| Fixture | 3-Continuous Winding |
| Winding Spindle Control | PHYSIS Servo Motor 4.4KW |
| Control System | HUST A6 System (Taiwan) |
| Traverse Control | PHYSIS Servo Motor 1.5KW × 3 |
| Indexing Control | PHYSIS Servo Motor 53KW |
| Display & HMI | 8-inch Color HMI |
| Fore-Aft Movement Control | PHYSIS Servo Motor 1.8KW |
| Applicable Wire Diameter | Single needle 0.6-1.2mm; 4-strand 0.8-1mm |
| Stator Slots | 3, 6, 9, 12, 18, 24, 36, 54, etc. |
| Stator OD | 550-750mm |
| Turns | 0-9999 |
| Stator ID | ≥450mm |
| Spindle Speed | 0-100rpm |
| Stack Height | ≤150mm |
| Air Pressure | 5-7kg/cm2 |
| Total Power | 64.2KW |
| Power Supply | AC380V 50/60Hz (3-Phase 5-Wire) |
| Gross Weight | 950kg |
| Dimensions | 1700*1300*2000mm |
